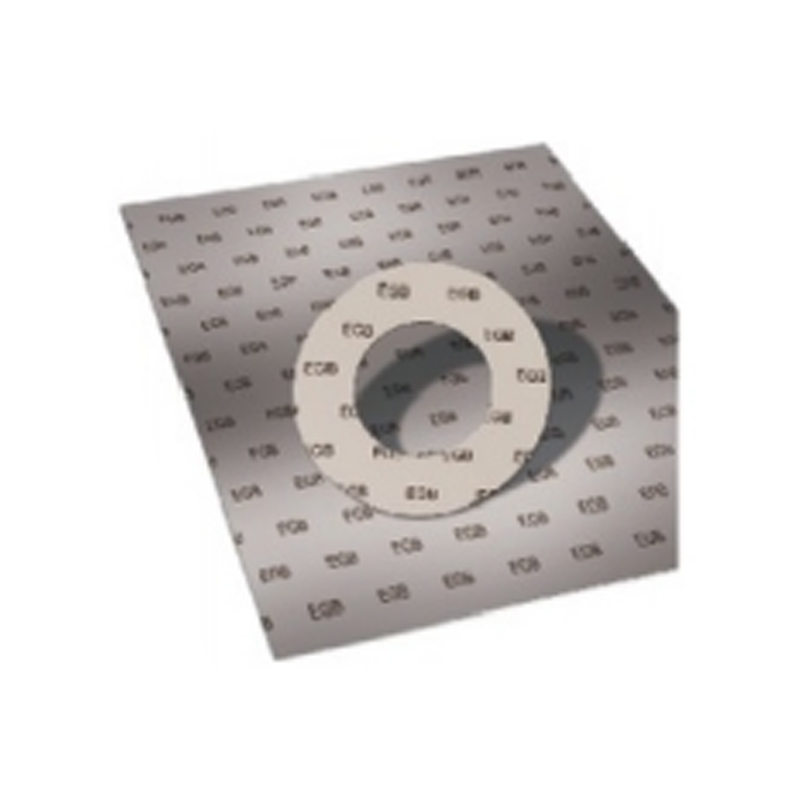

Polytetrafluoroethylene sealing gasket/plate

Polytetrafluoroethylene sealing gasket/plate

Polytetrafluoroethylene product structure:

Tetrafluoro plates/tubes/rods/films and gaskets are refined from 99.9% of pure tetrafluoro raw materials through molding or turning processes. become.

Filled modified tetrafluoro gasket product structure:

Inorganic substances are used as filler, and they are evenly flowed into the polytetrafluoroethylene raw material, and special plates are used to make The sheeting technology is processed and made into a finished product by stamping or shearing.

Production standards:

Can be processed and produced according to domestic and foreign non-metal gasket standards or according to special production technical specifications provided by customers.

Scope of application:

Pressure and temperature curve

The technical parameters of the filling modified PTFE gasket are executed according to the table.

Contact Us

Product Code Item

EGB9566

EGB9566/B

EGB9566/R

EGB9566/W

density

2.2

1.9

2.1~2.3

2.8~3.0

Temperature range

-100℃~250℃

-210°C~260°C

-210℃~260℃

-210℃~260℃

Maximum pressure

15MPa

5.5MPa

8.3MPa

8.3MPa

PH value

0-14

0-14

0-14

0-14

Filler

Glass particles

SiO₂

BaSO₄

color

white

yellow

yellow

White

Burgmann Sealing Products Co. Ltd., Ningbo

EGB is an industrial sealing technology supplier with a wide range of products, covering a full range of sealing products in the industrial field and a full range of services to ensure the reliability and safety of machinery.
EGB has long been focusing on providing customers from all over the world with advanced industrial sealing technology, high-quality products and complete services. We are a professional manufacturer of high-performance fluid sealing and piping solutions focusing on safety, product lifespan and production efficiency. We work with customers, industry associations to understand their unique sealing challenges and provide innovative solutions to meet specific needs.
Our solutions provide industry sealing products and services for the following industries: chemical, engineering, procurement and construction, food and beverage, maritime, mining, nuclear energy, oil and gas, aerospace, pharmaceutical, power generation, metallurgy, pulp and paper, water and wastewater, OEM.
We have modern research, development and testing equipment to continuously improve production processes and product quality, promote the transfer and transformation of laboratory technology to actual products, thereby meeting the rapidly changing needs of customers and accelerating the development of the sealing industry.
The product range of EGB includes a variety of reliable products with wide applications. We also customize specially designed seals for customers according to their different needs.
Provide reliable products and good services to meet the needs of our users. At the same time, we have made positive contributions to our environmental protection. We strive to be a provider of respected, user-oriented sealing solutions in China.
